Save Time and Money with This Cost-Reducing Tool

Ramp up the speed, enhance the quality, and get the job done at a lower cost when working with copper piping systems. Say goodbye to the traditional method for brazing and experience the innovation in fine-tuning brazing joints. With Brazing Dimpler, you only need to insert the tube to a depth equal to twice the thickness of the thinner tube to develop a joint as strong as the tube itself, but we recommend that you use the depth specified in ASME B16.50, Braze Joint Fittings.

No matter the scale of your brazing job, there’s a Brazing Dimpler that suits your project. Our patented brazing equipment creates a dimple in the fitting to limit the tube insertion depth. With reduced overlap and depth of insertion, you’ll have a faster, easier, and cost-effective brazing job with less brazing metal required, ensuring a perfectly brazed joint that matches the strength of the copper. For a deeper understanding of these concepts, refer to the articles on the “Technical Articles” page.

Take a leap towards automated efficiency with our latest offering — the Automated Brazing Dimpler. Utilizing compressed air, it forms dimples in mere seconds. Enjoy the flexibility of adjustable settings, make modifications to fittings from sizes 3/4 to 3 inches, and depth of insertion from 1/8 to 1-1/2 inches.  The large automated Dimpler will dimple fittings from 3 to 8 inch that are 1/4 inch thick!

Supercharge your brazing process with our innovative offerings:

• Automated Air-Powered Brazing Dimpler  with Adjustable Depth Stop shown on the right: Unleash the power of automation, providing speed and precision over hand dimples.  Comes two sizes – for 1 to 6 inch tube and the other for 2 to 8 inch tube.
• Light-duty Brazing Dimpler hand-operated for Tube Sizes from 1/2 to 1 inch with Adjustable Depth Stop: Ideal for lighter tasks.

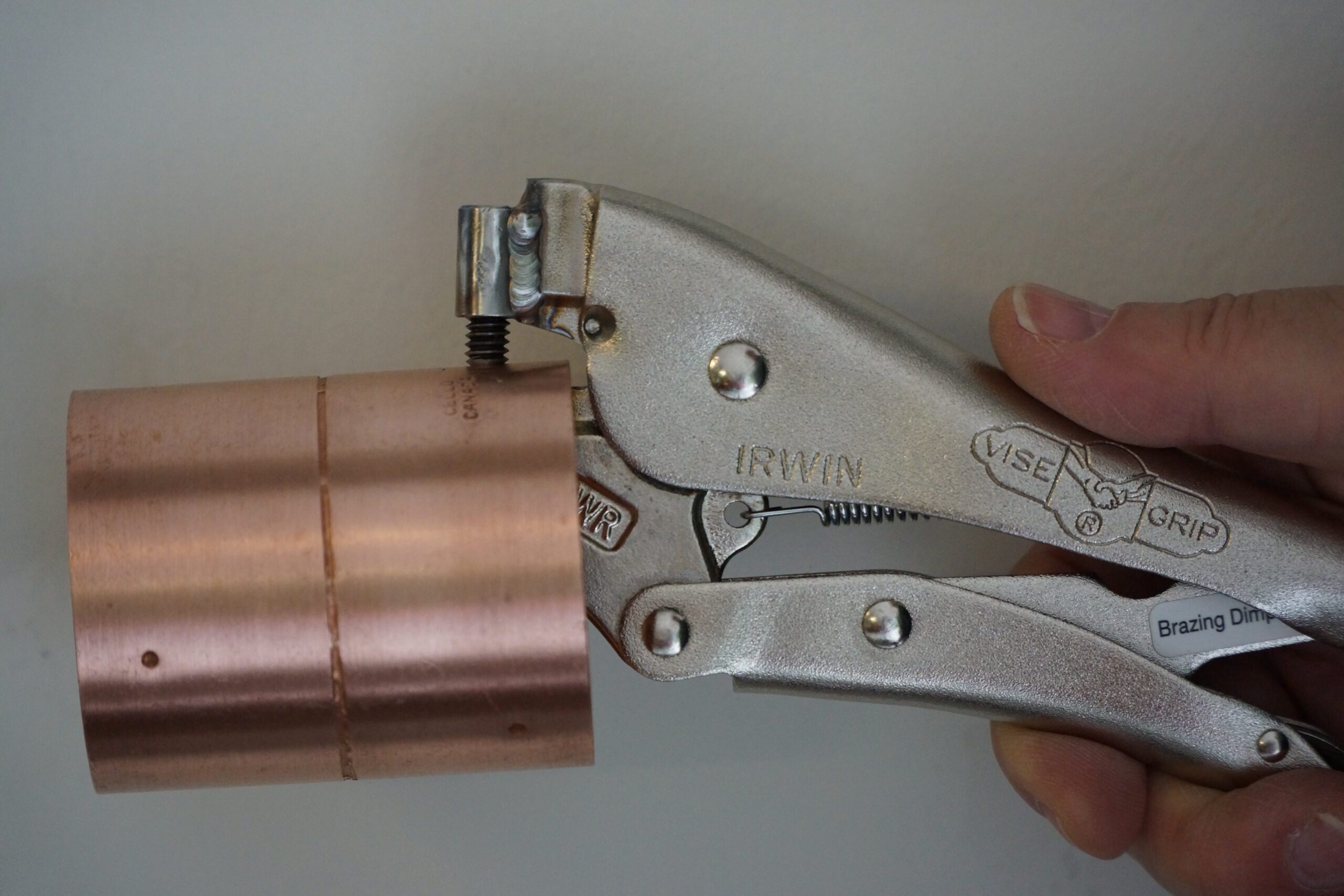

• Normal-duty Brazing Dimpler hand-operated shown on the right for Tube Sizes 3/4 inch up to 2 inches. Robust and reliable, your go-to solution for copper tube brazing tasks.  Will dimple up to 4 inch fittings, but you will have to make each dimple progressively due to the thickness of the fitting.

Speed up your brazing routines and reduce your  cost with the Brazing Dimpler. Connect with us today.
